TITLE: Case by Case

DESCRIPTION: Case by Case, my Nature of Code final project came from the idea to distinguish lowercase letters from uppercase letters for little kids to use. This was inspired by a parent-teacher meeting for my 3-year old. The teacher told me that my child was really good at identifying uppercase letters, but not lower case letters. When we read, we are deciphering many strings of lowercase letters, so I wanted to figure out a fun exercise to help him learn in preparation to learning how to read.

MAIN GOAL: To explore and understand the initial steps of letter and number recognition in a machine learning system using Shiffman’s Neural Network with p5 example of handwritten numbers and applying letters to his sketch.




PRESENTATION:

CASE BY CASE PRESENTATION





DOCUMENTATION:
Continued from last week’s Final Project: Step 1….

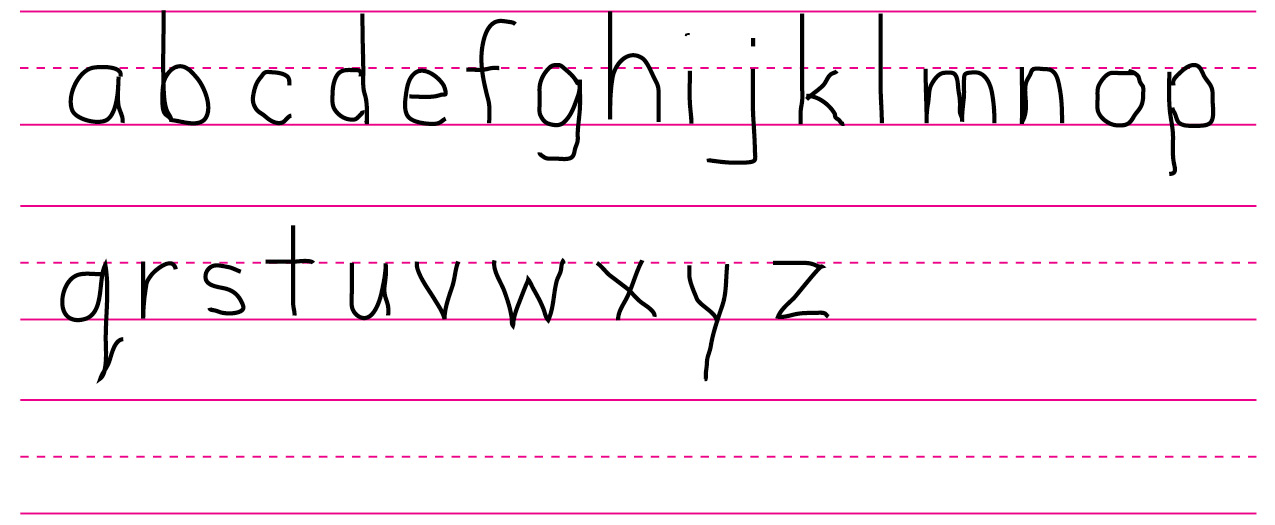

1) To distinguish between upper and lowercase letters, I needed to creating the handwritten letter dataset to add to Shiffman’s Neural Network.

ASCI_TEST



TEST WITH DECORATIVE LETTER




NEXT STEPS: To keep exploring this method and eventually build this kid’s app that could not only create testing data from what the child writes, but could also be a fun way for kid’s to practice writing their letters and identifying the letters case by case.



SOURCE CODE:

// Daniel Shiffman
// Nature of Code: Intelligence and Learning
// https://github.com/shiffman/NOC-S17-2-Intelligence-Learning
// Based on "Make Your Own Neural Network" by Tariq Rashid
// https://github.com/makeyourownneuralnetwork/
// Neural Network
var nn;
// Train and Testing Data
var training;
var testing;
// Where are we in the training and testing data
// (for animation)
var trainingIndex = 0;
var testingIndex = 0;
// How many times through all the training data
var epochs = 0;
// Network configuration
var input_nodes = 784;
var hidden_nodes = 256;
// for numbers
//var output_nodes = 10;
// for ascii
var output_nodes = 127;
// Learning rate
var learning_rate = 0.1;
// How is the network doing
var totalCorrect = 0;
var totalGuesses = 0;
// Reporting status to a paragraph
var statusP;
// This is for a user drawn image
var userPixels;
var smaller;
var ux = 16;
var uy = 100;
var uw = 140;
// Load training and testing data
// Note this is not the full dataset
// From: https://pjreddie.com/projects/mnist-in-csv/
function preload() {
training = loadStrings('data/mnist_train_10000.csv');
testing = loadStrings('data/mnist_test_1000.csv');
}
function setup() {
// Canvas
createCanvas(320, 280);
// pixelDensity(1);
// Create the neural network
nn = new NeuralNetwork(input_nodes, hidden_nodes, output_nodes, learning_rate)
// Status paragraph
statusP = createP('');
var pauseButton = createButton('pause');
pauseButton.mousePressed(toggle);
// Toggle the state to start and stop
function toggle() {
if (pauseButton.html() == 'pause') {
noLoop();
pauseButton.html('continue');
} else {
loop();
pauseButton.html('pause');
}
}
// This button clears the user pixels
var clearButton = createButton('clear');
clearButton.mousePressed(clearUserPixels);
// Just draw a black background
function clearUserPixels() {
userPixels.background(0);
}
// Save the model
var saveButton = createButton('save model');
saveButton.mousePressed(saveModelJSON);
// Save all the model is a JSON file
// TODO: add reloading functionality!
function saveModelJSON() {
// Take the neural network object and download
saveJSON(nn, 'model.json');
}
// Create a blank user canvas
userPixels = createGraphics(uw, uw);
userPixels.background(0);
// Create a smaller 28x28 image
smaller = createImage(28, 28, RGB);
// This is sort of silly, but I'm copying the user pixels
// so that we see a blank image to start
var img = userPixels.get();
smaller.copy(img, 0, 0, uw, uw, 0, 0, smaller.width, smaller.height);
}
// When the mouse is dragged, draw onto the user pixels
function mouseDragged() {
// Only if the user drags within the user pixels area
if (mouseX > ux && mouseY > uy && mouseX < ux + uw && mouseY < uy + uw) {
// Draw a white circle
userPixels.fill(255);
userPixels.stroke(255);
userPixels.ellipse(mouseX - ux, mouseY - uy, 16, 16);
// Sample down into the smaller p5.Image object
var img = userPixels.get();
smaller.copy(img, 0, 0, uw, uw, 0, 0, smaller.width, smaller.height);
}
}
function draw() {
background(200);
// Train (this does just one image per cycle through draw)
var traindata = train();
// Test
var result = test();
// The results come back as an array of 3 things
// Input data
var testdata = result[0];
// What was the guess?
var guess = result[1];
// Was it correct?
var correct = result[2];
// Draw the training and testing image
drawImage(traindata, ux, 16, 2, 'training');
drawImage(testdata, 180, 16, 2, 'test');
// Draw the resulting guess
fill(0);
rect(246, 16, 2 * 28, 2 * 28);
// Was it right or wrong?
if (correct) {
fill(0, 255, 0);
} else {
fill(255, 0, 0);
}
textSize(60);
// show the raw ascii int *
text(guess, 230, 264);
// convert to the string *
text(String.fromCharCode(guess), 257, 64);
// String.fromCharCode(48) == '0'
// Tally total correct
if (correct) {
totalCorrect++;
}
totalGuesses++;
// Show performance and # of epochs
var status = 'performance: ' + nf(totalCorrect / totalGuesses, 0, 2);
status += '<br>';
// Percent correct since the sketch began
var percent = 100 * trainingIndex / training.length;
status += 'epochs: ' + epochs + ' (' + nf(percent, 1, 2) + '%)';
statusP.html(status);
// Draw the user pixels
image(userPixels, ux, uy);
fill(0);
textSize(12);
text('draw here', ux, uy + uw + 16);
// Draw the sampled down image
image(smaller, 180, uy, 28 * 2, 28 * 2);
// Change the pixels from the user into network inputs
var inputs = [];
smaller.loadPixels();
for (var i = 0; i < smaller.pixels.length; i += 4) {
// Just using the red channel since it's a greyscale image
// Not so great to use inputs of 0 so smallest value is 0.01
inputs[i / 4] = map(smaller.pixels[i], 0, 255, 0, 0.99) + 0.01;
}
// Get the outputs
var outputs = nn.query(inputs);
// What is the best guess?
var guess = findMax(outputs);
// Draw the resulting guess
fill(0);
rect(246, uy, 2 * 28, 2 * 28);
fill(255);
textSize(60);
text(String.fromCharCode(guess), 258, uy + 48);
}
// Function to train the network
function train() {
// Grab a row from the CSV
var values = training[trainingIndex].replace(/\s+/g, '').split(',');
//text(values[0], 0, 50);
values[0] = values[0].charCodeAt();
// print ascii code that is actually used for training
text(values[0], 75, 66);
// Make an input array to the neural network
var inputs = [];
// Starts at index 1
for (var i = 1; i < values.length; i++) {
// Normalize the inputs 0-1, not so great to use inputs of 0 so add 0.01
inputs[i - 1] = map(Number(values[i]), 0, 255, 0, 0.99) + 0.01;
}
// Now create an array of targets
targets = [];
// Everything by default is wrong
for (var k = 0; k < output_nodes; k++) {
targets[k] = 0.01;
}
// The first spot is the class
var label = Number(values[0]);
//text(label, 0, 100);
// So it should get a 0.99 output
targets[label] = 0.99;
//console.log(targets);
// Train with these inputs and targets
nn.train(inputs, targets);
// Go to the next training data point
trainingIndex++;
if (trainingIndex == training.length) {
trainingIndex = 0;
// Once cycle through all training data is one epoch
epochs++;
}
// Return the inputs to draw them
return inputs;
}
// Function to test the network
function test() {
// Grab a row from the CSV
//var values = training[testingIndex].split(',');
var values = testing[testingIndex].replace(/\s+/g, '').split(',');
//values[0] = int(values[0]);
values[0] = values[0].charCodeAt();
// Make an input array to the neural network
var inputs = [];
// Starts at index 1
for (var i = 1; i < values.length; i++) {
// Normalize the inputs 0-1, not so great to use inputs of 0 so add 0.01
inputs[i - 1] = map(Number(values[i]), 0, 255, 0, 0.99) + 0.01;
}
// The first spot is the class
var label = Number(values[0]);
// Run the data through the network
var outputs = nn.query(inputs);
// Find the index with the highest probability
var guess = findMax(outputs);
// Was the network right or wrong?
var correct = false;
if (guess == label) {
correct = true;
}
// Switch to a new testing data point every so often
if (frameCount % 30 == 0) {
testingIndex++;
if (testingIndex == testing.length) {
testingIndex = 0;
}
}
// For reporting in draw return the results
return [inputs, guess, correct];
}
// A function to find the maximum value in an array
function findMax(list) {
// Highest so far?
var record = 0;
var index = 0;
// Check every element
for (var i = 0; i < list.length; i++) {
// Higher?
if (list[i] > record) {
record = list[i];
index = i;
}
}
// Return index of highest
return index;
}
// Draw the array of floats as an image
function drawImage(values, xoff, yoff, w, txt) {
// it's a 28 x 28 image
var dim = 28;
// For every value
for (var k = 0; k < values.length; k++) {
// Scale up to 256
var brightness = values[k] * 256;
// Find x and y
var x = k % dim;
var y = floor(k / dim);
// Draw rectangle
fill(brightness);
noStroke();
rect(xoff + x * w, yoff + y * w, w, w);
}
// Draw a label below
fill(0);
textSize(12);
text(txt, xoff, yoff + w * 35);
}

Nature of Code / Final Project: Step 1

TITLE: Case by Case

DESCRIPTION: Nature of Code final project that distinguishes lowercase letters from uppercase letters for little kids to use. The idea was inspired by a children’s app called Endless Wordplay and from a parent-teacher meeting for my 3-year old. His teacher informed me that he was really good at identifying uppercase letters, but not lower case letters. In preparation towards the next steps of reading, deciphering lowercase letters is something that we needed to work on since most of reading is strings of lowercase letters.  And for myself, in effort to grasp the idea of neural networks and machine learning, I decided to work with Shiffman’s neural network of handwritten numbers using the MNIST database and apply letters to his sketch. Eventually, I would like to apply that model to identify letters and numbers in graphic illustrations, photos and different typefaces.

————

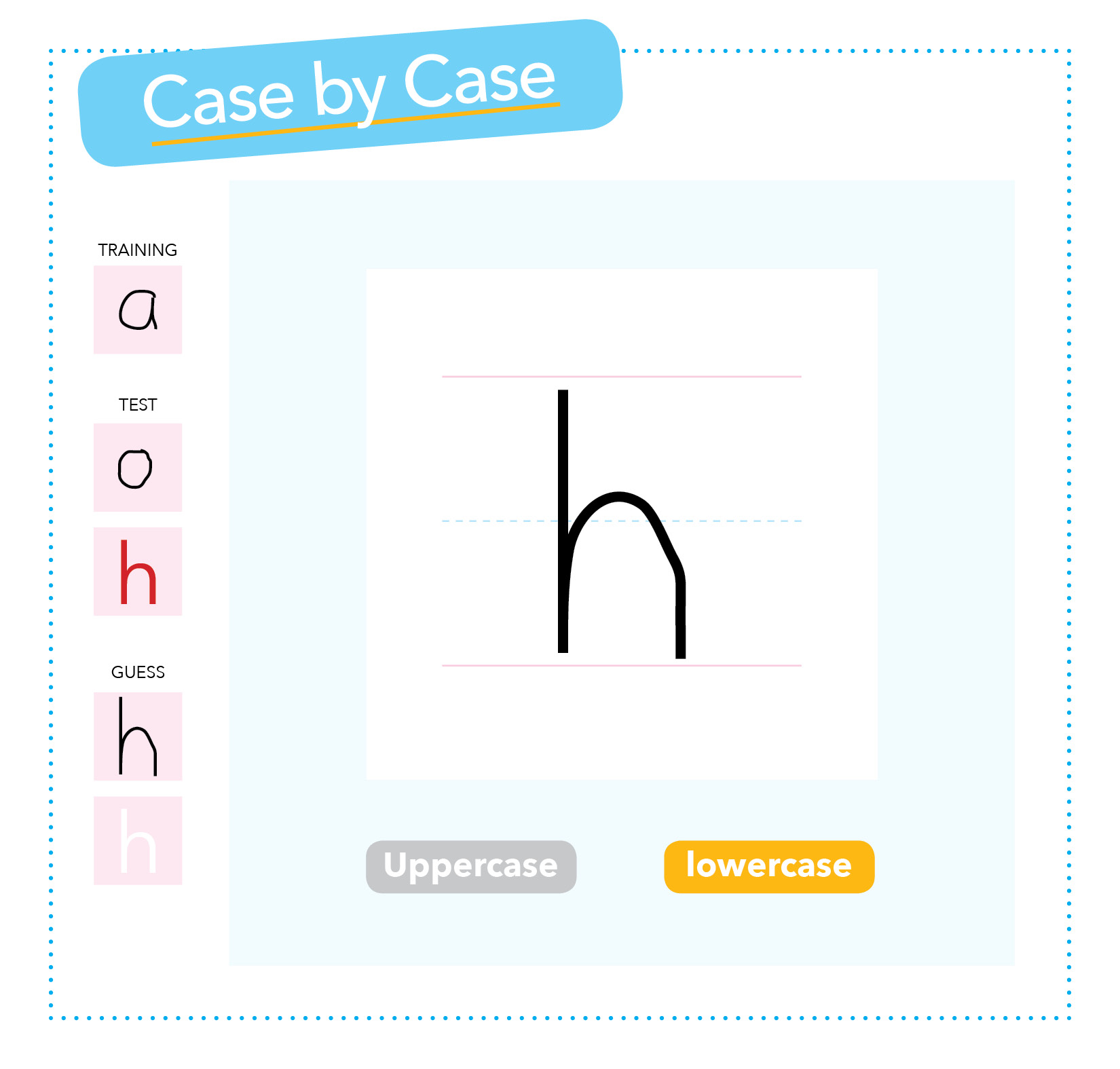

MOCKUP:


DOCUMENTATION:
1) In building upon Daniel Shiffman’s Neural Network example from Nature of Code, which was also based on Tariq Rashid’s Make Your Own Neural Network, I want to use a training set of handwritten letters to distinguish between upper and lowercase letters as an initial step. I eventually want to take photos or illustrations of letters and numbers, similar to pieces in 36 Days of Type below, and teach the neural network to identify the letter or number.

36 DAYS OF TYPE

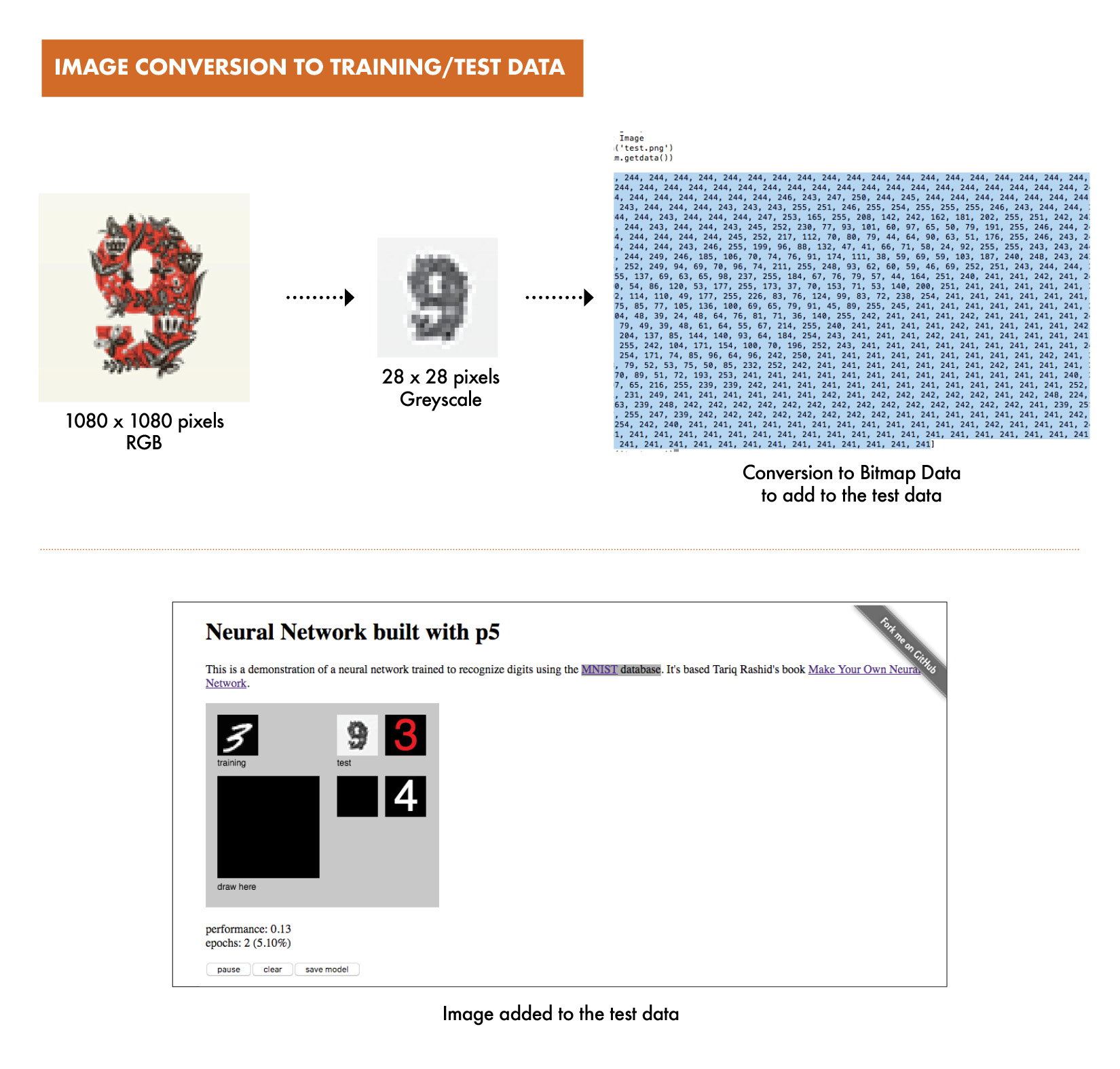

2) Converting a test image of a number illustration into a bitmap file to add to the training set. Converted the test image into a 28 x 28 pixel greyscale image in Photoshop and then used Python to extract the pixel values from the photo illustration.

from PIL import Image
im = Image.open('um_000000.png')
pixels = list(im.getdata())

(SOURCE)

3) Creating the upper and lowercase training set, adding that to the data folder and build…

Nature of Code / Exercise 3: Datasets

DATASET

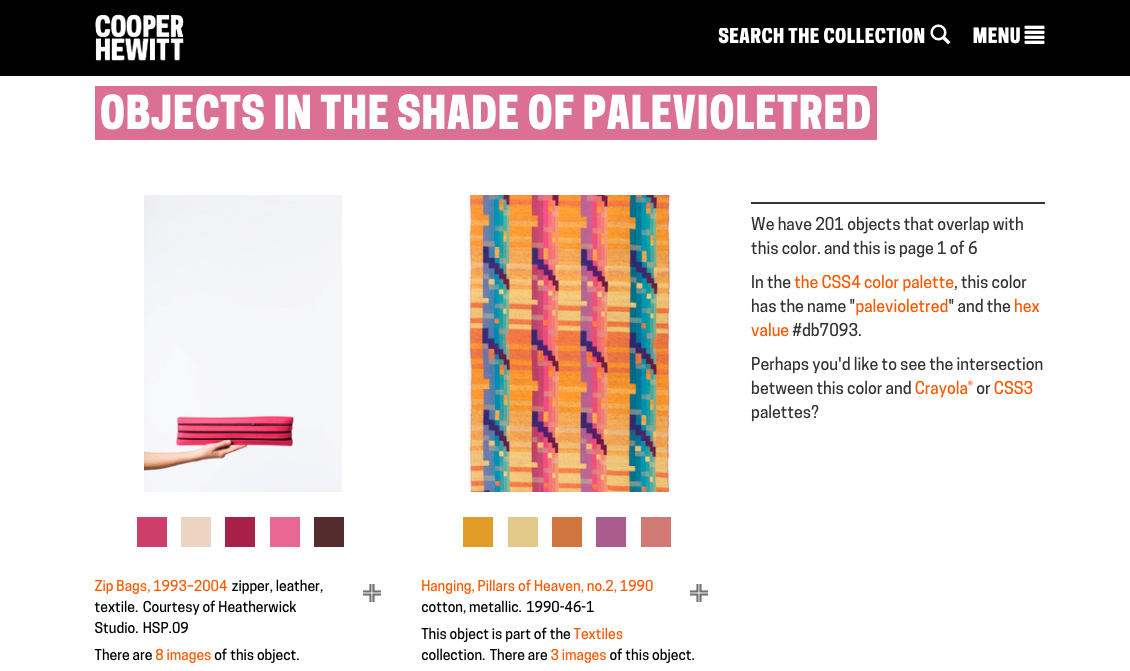

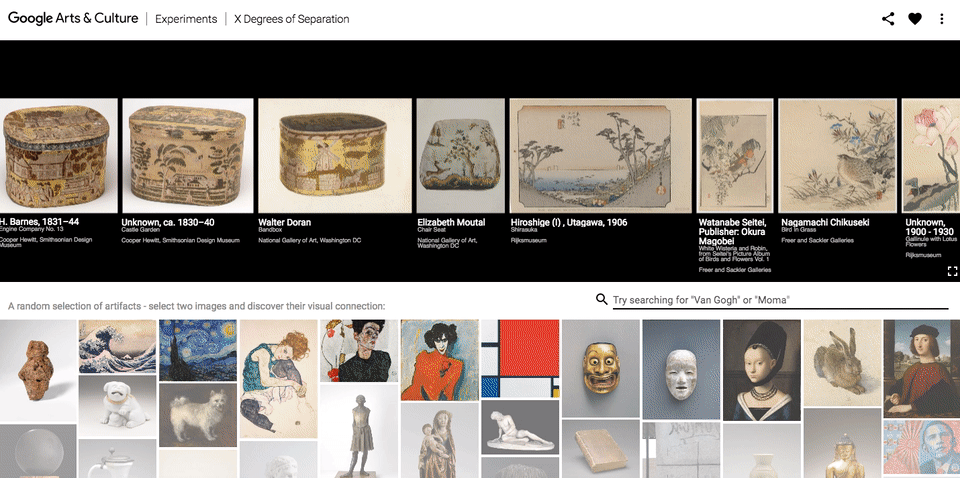

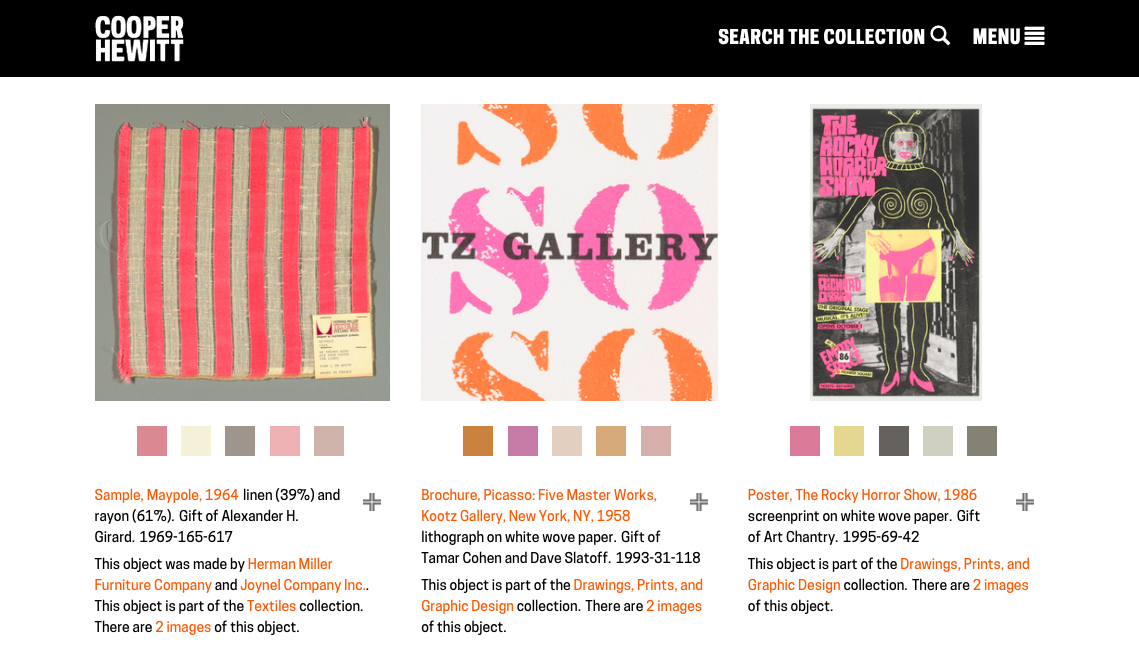

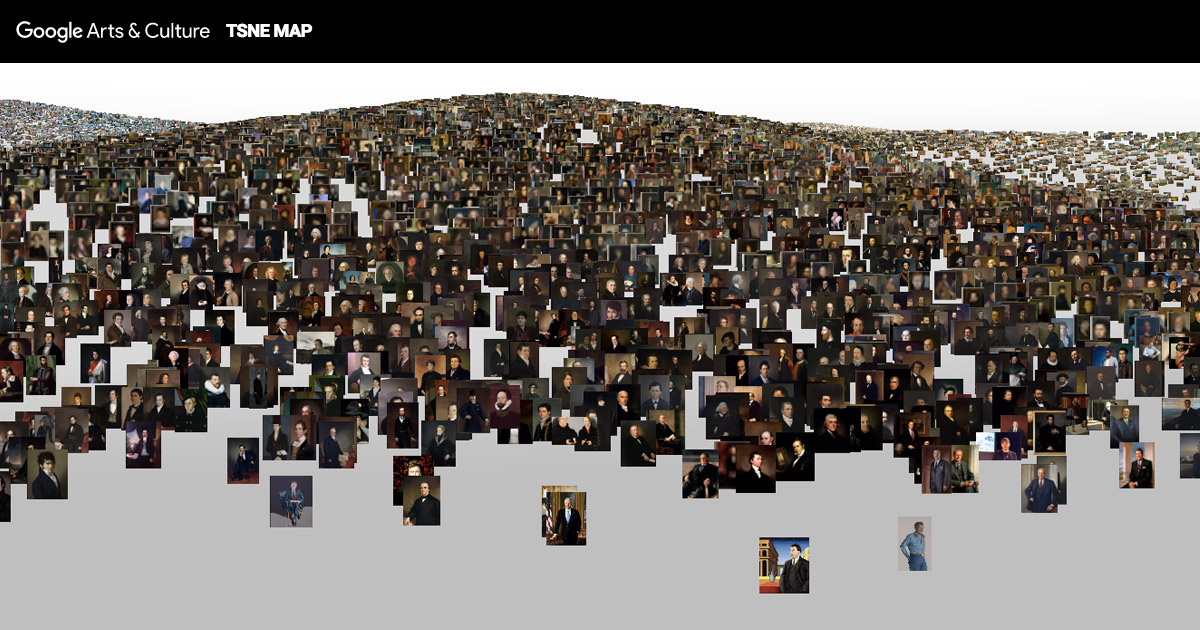

For this week’s assignment, I decided to think of a dataset that I would like to use with a supervised learning machine learning algorithm and want to concentrate on finding patterns and similarity within images. At first I looked at the Instagram API because I wanted to try to find ‘magazine covers’ from the feed without hashtags or geotags, but since the Instagram users own their images, there seems to be a lot of restrictions. So I remembered from another class that the Smithsonian API could also be used to explore the images and through that I found the Cooper Hewitt API, which seems to format the data as JSON files. Below is an example of how they used colors to classify the pieces in the museum.



Nature of Code / Exercise #1 / Binary Tree

full screen

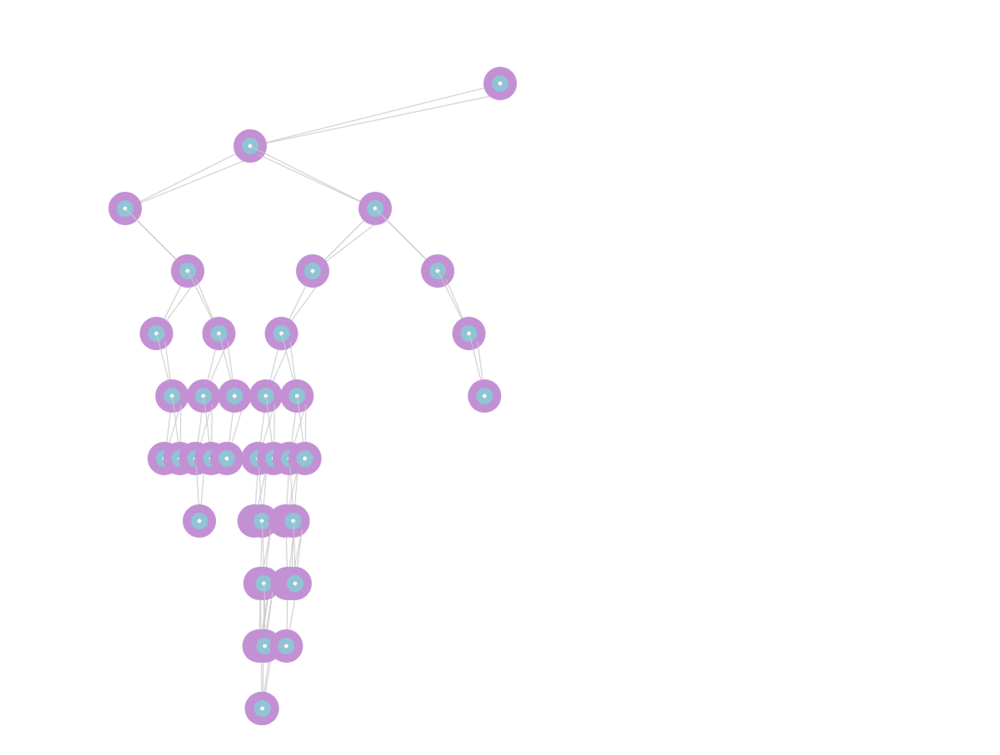

EXERCISE #1Visual Binary Trees: I wanted to concentrate on something visual and understand binary trees in code. The samples above (heavily relying on Dan Shiffman’s video tutorial and source code on binary trees viz) are really basic playing with colors and shapes in p5 taking inspiration from Giorgia Lupi and Stefanie Posavec’s Dear Data graphs to help myself understand the mechanism of the code. I definitely need to work on this more to come up with something more original. Eventually, I’d like to model it after these neural illustrations done below by neuroscientist, Santiago Ramon y Cajal.
